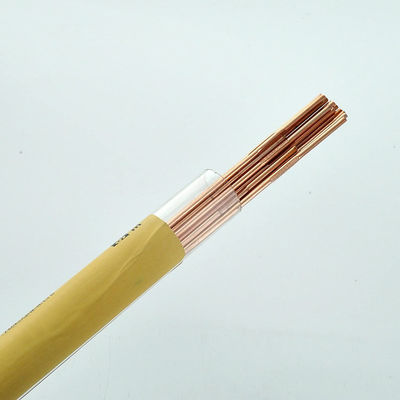

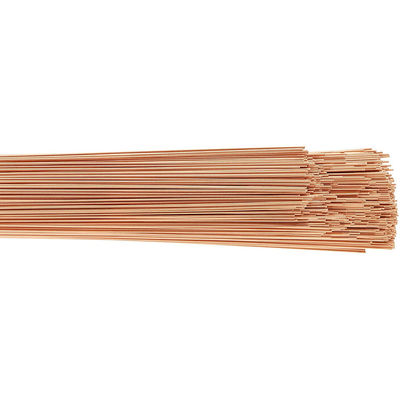

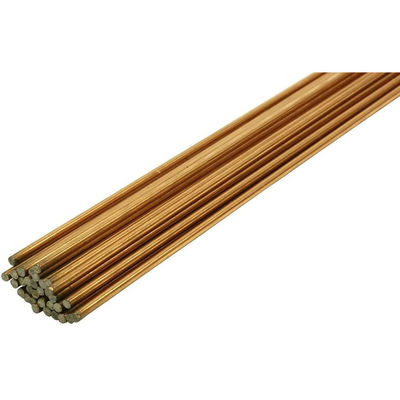

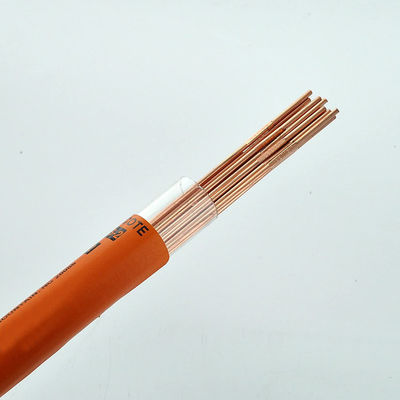

1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard

1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard

Large Image :  1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Upper
Model Number: UP010-005
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $2.17/pieces 1000-4999 pieces
Packaging Details: 1lb/tube
Supply Ability: 300000 Piece/Pieces per Month
Contact Now

1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard

Description
Customized Support: OEM, ODM Material: TUNGSTEN
Diameter: 5/32" Weight: L LB
Application: TIG, MIG, TIG Welding, Welding And Cutting Product Name: ER70S-6 Copper Coated Steel Welding Wire
Usages: Welding Tool Packing: Plastic Box
Color: Silver MOQ: 1 Ton
Standard: ISO 6848, AWS A5.12 Surface: Ground Finish
Package: 1lb/tube Shape: Rod, Bar
Port: Ningbo,shanghai,Guanghzhou

0.045" 1/16" 3/32" 3/32" 1/8" x 36" 1LB Package ER70S-6 Copper coated steel Welding Wire
ER70S-6 is primarily for single-pass welding of killed, semi-killed, and rimmed steels, but may also be used for some multi pass
applications. Because of added deoxidants, ER70S-6 can be used for welding steels that have a rusty or dirty surface, with a
possible sacrifice of weld quality depending on the condition of surface.
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 0
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 1
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 2
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 3
Specification
Copper coated steel welding wire ER70S-6
ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with
stable feasibility, good welding seams, less spatters and excellent welding process properties.

Application:
Used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container
building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

ER70S-6 MIG WIRE Packing:
PackagingWire SizePackageNet Weightφ1.6~4.0(mm)5kg/tube. 10kg/tube5kg, 10kg

Wire Chemical Composition (%)CMnSiPSCrNiCu0.06~0.151.40~1.851.80~1.15≤0.025≤0.035--≤0.50
Deposited Metal Mechanical PropertiesYield StrengthTensile StrengthElongationAKV Imapact Energyσ0.2(Mpa)σb(Mpa)δ5%(J)(-40℃)≥420
≥500≥22≥90Diameter of wire(mm) Wleding Current(A)Φ1.0Φ1.2Φ1.4Φ1.640~14050~22080~350120~450
Matters needing attention:
1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package.
2.Welding shall be removed before welding surface oil, rust,water and other impurities.
3.The CO2 gas protection, CO2gas purity 99.98%.
4.CO2 welding protective gas flow rate should be controlled at 20~25L/min.
5.Wire extension length should be controlled in the range of 15~25mm.
6.Preheatig before welding to weld 150℃~300℃, 700℃~740℃ tempering treatment only after.
Packing & Delivery
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 4
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Our Factory
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 6
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 7
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 8
Certifications
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 9
FAQ
1LB Package ER70S-6 Copper Coated Steel Welding Wire with Silver and ISO 6848 Standard 10
