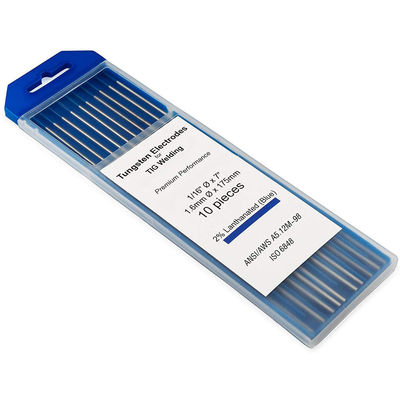

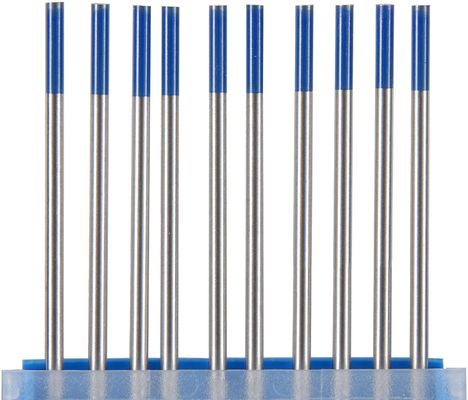

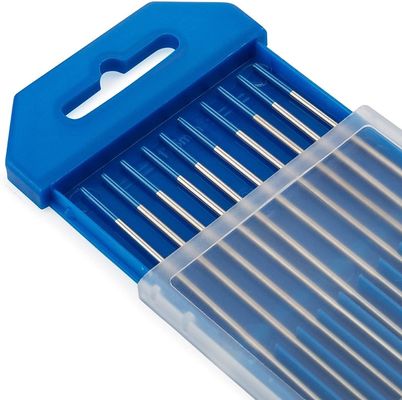

Blue 2% Lanthanated TIG 1/16'' 3/32'' 1/8''x 7'' 10 Pack WL20 Ground Finish Tungsten Electrodes for TIG Welding

Large Image : Blue 2% Lanthanated TIG 1/16'' 3/32'' 1/8''x 7'' 10 Pack WL20 Ground Finish Tungsten Electrodes for TIG Welding

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Upper
Model Number:	UP009-001

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.79/pieces 1000-4999 pieces
Packaging Details:	10pcs/plastic box
Supply Ability:	300000 Piece/Pieces per Month

Contact Now

Blue 2% Lanthanated TIG 1/16'' 3/32'' 1/8''x 7'' 10 Pack WL20 Ground Finish Tungsten Electrodes for TIG Welding

Description

Customized Support:	OEM, ODM	Material:	TUNGSTEN
Operating Current:	50-500A	Welding Current:	50-240A
Product Name:	WL20 Ground Finish Tungsten Electrodes For TIG Welding	Usages:	Welding Tool
Packing:	Plastic Box	Color:	Blue
MOQ:	1 Ton	Standard:	ANSI/AWS A5 12M-98
Surface:	Ground Finish	Package:	10 Pieces/box
Application:	TIG Welding, Welding And Cutting	Shape:	Rod, Bar
Port:	Ningbo,shanghai,Guanghzhou

2% Lanthanated TIG 1/16'' 3/32'' 1/8''x 7'' 10 Pack WL20 Ground Finish Tungsten Electrodes for TIG Welding

* TOP QUALITY 3/32" 2% Lanthanated Tungsten Electrodes for TIG Welding
* TOP RATED Ten (10) Pack of 2% Lanthanated Tungsten Electrodes
* TOP VALUE Savings Up to 50% Off Other Marketplace Sellers
* TUNGSTEN ELECTRODE SIZE: 3/32" x 7" or 2.4mm x 175mm
* TUNGSTEN ELECTRODE MATERIAL: 2% Lanthanated (Blue) EWLa-2 Material Conforms to: ANSI/AWS A5.12, JIS, DIN EN 26848, ISO 6848.

Specification

tungsten electrode composition						Color mark
Grade	Dioxide	Dioxide in %	Impurities %	tungsten %		Color mark
WT10	ThO2	0.80-1.20	≤0.02	Remainder	Yellow
WT20	ThO2	1.70-2.20	≤0.02	Remainder	Red
WT30	ThO2	2.80-3.20	≤0.02	Remainder	Purple
WT40	ThO2	3.80-4.20	≤0.02	Remainder	Orange
WC20	CeO2	1.80-2.20	≤0.02	Remainder	Grey
WL10	La2o3	0.90-1.20	≤0.02	Remainder	Black
WL15	La2o3	1.40-1.60	≤0.02	Remainder	Gold
WL20	La2o3	1.90-2.10	≤0.02	Remainder	Blue
WZr3	ZrO2	0.15-0.50	≤0.02	Remainder	Brown
WZr8	ZrO2	0.70-0.90	≤0.02	Remainder	White
WP	-	-	≤0.02	99.8	Green
WY	YO2	1.80-2.20	≤0.02	Remainder	Sky blue
WS2	YO2	1.80-2.20	≤0.02	Remainder	Turquoise

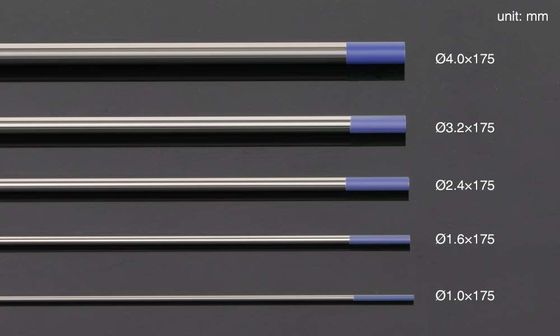

Diameter			Diameter tolerance	Length	Length tolerance	Color mark
mm	inch	mm	mm	mm		Color mark
1	1/25	(+/-)0.01	50,75,150,175	(+/-)1.0	Yellow
1.2	6/125	(+/-)0.01	50,75,150,175	(+/-)1.0	Red
1.6	1/16	(+/-)0.02	50,75,150,175	(+/-)1.0	Purple
2	2/25	(+/-)0.02	50,75,150,175	(+/-)1.0	Orange
2.4	3/32	(+/-)0.02	50,75,150,175	(+/-)1.0	Grey
3	3/25	(+/-)0.03	50,75,150,175	(+/-)1.0	Black
3.2	1/8	(+/-)0.04	50,75,150,175	(+/-)1.0	Gold
4	5/32	(+/-)0.04	50,75,150,175	(+/-)1.0	Blue
4.8	3/16	(+/-)0.04	50,75,150,175	(+/-)1.0	Brown
5	1/5	(+/-)0.04	50,75,150,175	(+/-)1.0	White
6	15/64	(+/-)0.04	50,75,150,175	(+/-)1.0	Green
6.4	1/4	(+/-)0.04	50,75,150,175	(+/-)1.0	Sky blue
8	5/16	(+/-)0.04	50,75,150,175	(+/-)1.0	Turquoise
10	2/5	(+/-)0.04	50,75,150,175	(+/-)1.0

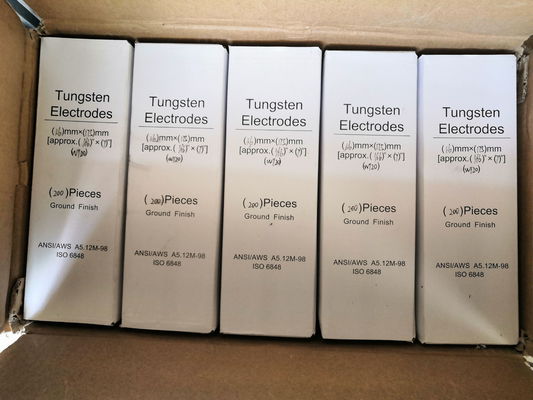

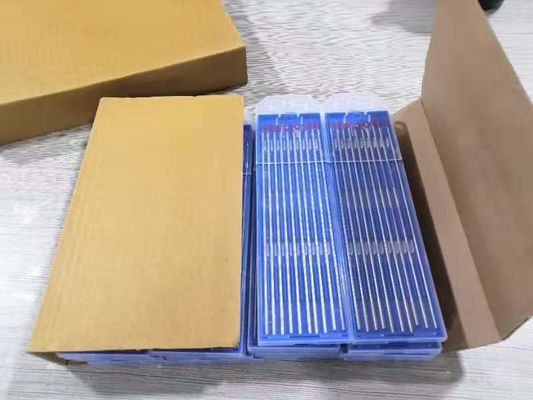

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Our Factory

Certifications

FAQ

Contact Details

Ningbo Aipu Tools Co., Ltd.

Contact Person: Mr. Joey

Tel: +8615757839279
